QTJ10-15 -type hollow brick machine brick machine cement brick machine
Parameters:
Capacity : 48 (kw)
Transmission: Automatic
Excitation frequency :2800 -4500 ( beats / min )
Type: Concrete Machinery
:15 -20 molding cycle (sec )
Model : QTJ10-15
Main vibration form : Taiwan earthquake
Maximum pressure : 90 (KN)
Purpose : QTJ10-15 type brick machine | brick machine | cement hollow brick machine production Pastes , hollow bricks
Total power : 480000 (w)
Total Weight : 11 (t)
Dimensions : 880 * 248 * 298 (cm)
Molding pressure :16 -26 ( t )
Introduction :
One , QTJ10-15 type brick machine | brick machine | cement hollow brick machine imported PLC intelligent control, using Germany, Taiwan imported hydraulic components , technical parameters adjustable at any time , the machine has a fault alarm, fault location display, operation and maintenance is easy to learn .
Second, the rapid adoption of 360 -degree rotation occurs when a mechanical malfunction , failure to notify the user can accurately and timely treatment , rehabilitation compulsory cloth , feeding low-frequency , high-frequency vibration, completely solve the problem of the fabric , producing a variety of products , can achieve the desired molding effect , to high density and high strength.
Third, brick machine | brick machine | cement hollow brick machine body with heavy steel manufacturing, split design , extending the life of the body , smooth and reliable performance, so that the middle of a small cylinder die fast movements, two large sides cylinders, increasing the pressure , so that the products forming speed, the pressure is good.
Fourth, change unburned mold can produce hollow block , road shoulder , river , slope , square brick of a machine .
Five , with a special palletizer can easily achieve high yields automated production.

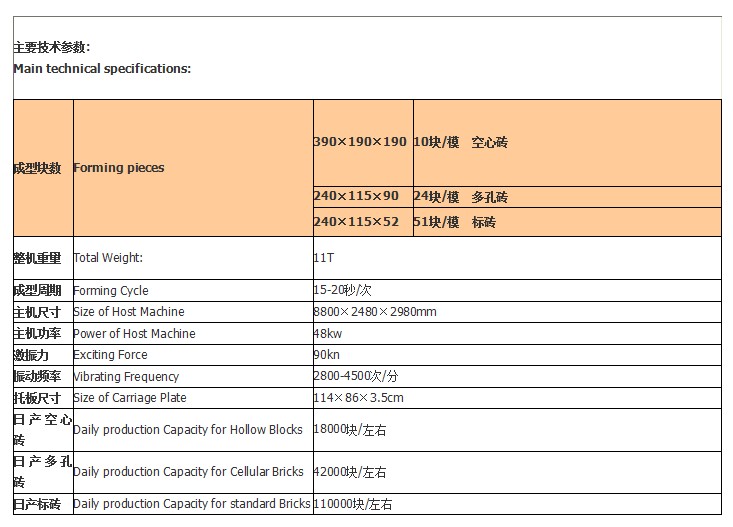

QTJ10-15 type cement hollow brick machine brick machine brick machine Technical parameters :
Please visit Search: Automatic hollow brick, automatic brick machine, brick machine Shandong Machinery, Curb brick, brick export, automatic hydraulic press, Shandong brick prices, small cement brick, green saving brick, brick factory in Shandong, mobile hollow brick

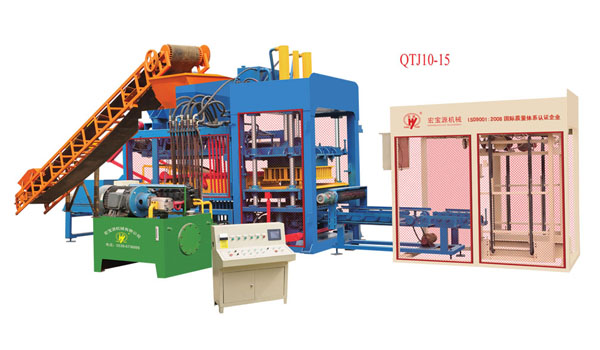

QTJ10-15 type cement hollow brick machine brick machine brick machine image:
